China High Quality Uv6090 Factory – YDM A1 size 6090C Flatbed UV Printer – Yicai
China High Quality Uv6090 Factory – YDM A1 size 6090C Flatbed UV Printer – Yicai Detail:
Product Picture
Product Parameters
Product Name: YDM 6090 UV Printer A1
|
Print Technology |
|
| Printer Medel | 6090C UV Printer |
| Head Model | Epson XP600,DX7,DX5,i3200/Toshiba CE4M/RICOH G5i |
| Head Qty. | 1-4pcs |
| Print Direction | Unidirectional/Bidirectional |
| Head Cleaning | Automatic |
| Print Resolution | 4 Pass:720*720dpi6 Pass:720*1080dpi8 Pass:720*1440dpi |
|
Ink System |
|
| Ink Type | UV Curable Ink,with RoHS certificate |
| Color Set | CMYK/CMYK+W/CMYK+W+V/ CMYK+LC+LM+W+V |
| Ink Cartridge Volume | 1000ml |
| Drying Type | UV LED lamp Curing |
| White Ink Stiring | Standard Configuration |
| White Ink Circulation | Standard Configuration |
|
Media |
|
| Media Type | Acrylic/Cardboard/Ceramic Tiles/Metal/PVC/Glass/Phone Case/ID Card and other flat media |
| Max.Media Thickness | 200mm,Max 300mm |
|
Others |
|
| Operation Language | English |
| Operation System | Windows XP/Windows 7,64 bit, CPU≥ i5, RAM ≥8GB, Space for Disk C≥100G |
| Operation Platform | Vacuum Suction Platform |
| Signal Transmission | LAN & USB3.0 |
| Color Control | Comply with ICC standards, with curve and density adjustment function |
| Power Supply | AC220V,50/ 60HZ |
| Working Power | 1 KW |
| Noise | Standby < 32 dB ; Working < 65 dB |
product details
Small machine with wide function
YDM 6090 UV Printer is one of popular machine in the market based on the max 20cm printing height,that make the machine usage is much widely,especially for the customized printing,like cups printing,bottles printing,rings printing and so on.By the way,for cups/bottles printing,you can also choose the A/B film transfer to get what you need.

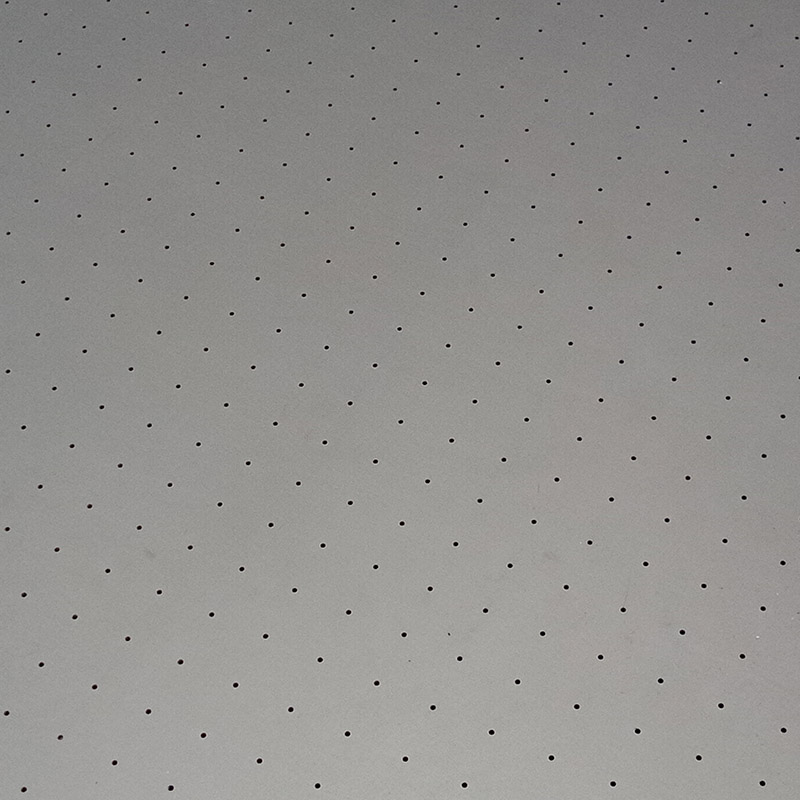

Vacuum Platform
Antioxidative vacuum platform with double teflon coating treatment,light weight with high hardness surface,scrath resistance and corrosion resistance.Vacuum platform can make the media on the platform more flat to keep printing much smoothly and safely instead of glass platform
Max 20cm height printing
Our 6090 model max printing height can reach 20cm,and it is much suitable for customized printing specifically,like the gift box and so on.This model 6090 uv printer support customized max 30cm printing height tooo,it will be more suitable for printing the special media with height less 30cm

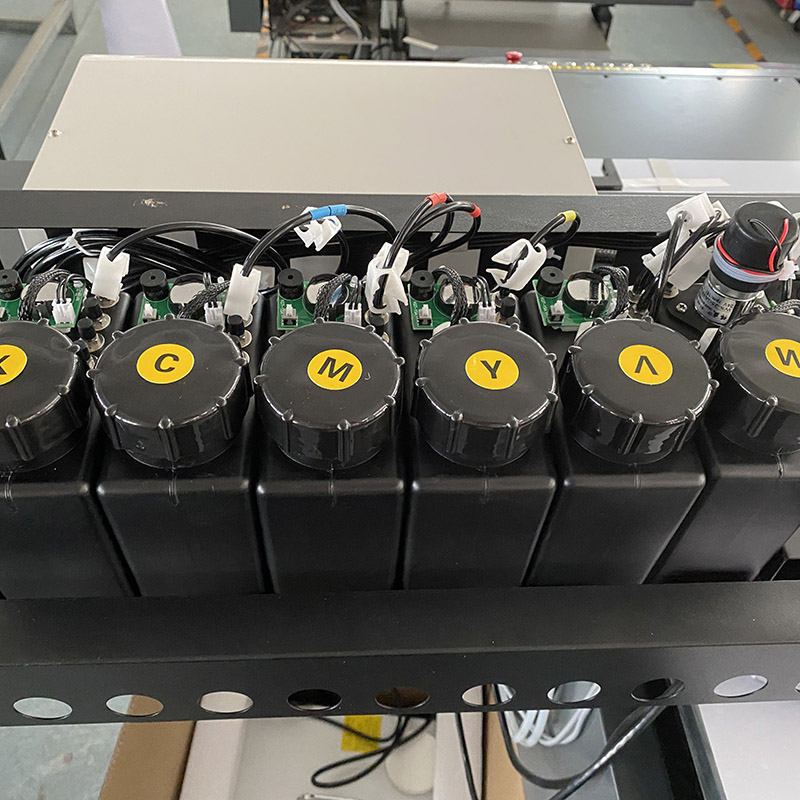

Ink Detection System
Ink alarming system can remind users of low ink level by sparkling light and sounds, and YDM 6090 UV printer equipped with circulation&stirring system for white ink to protect the white heads.

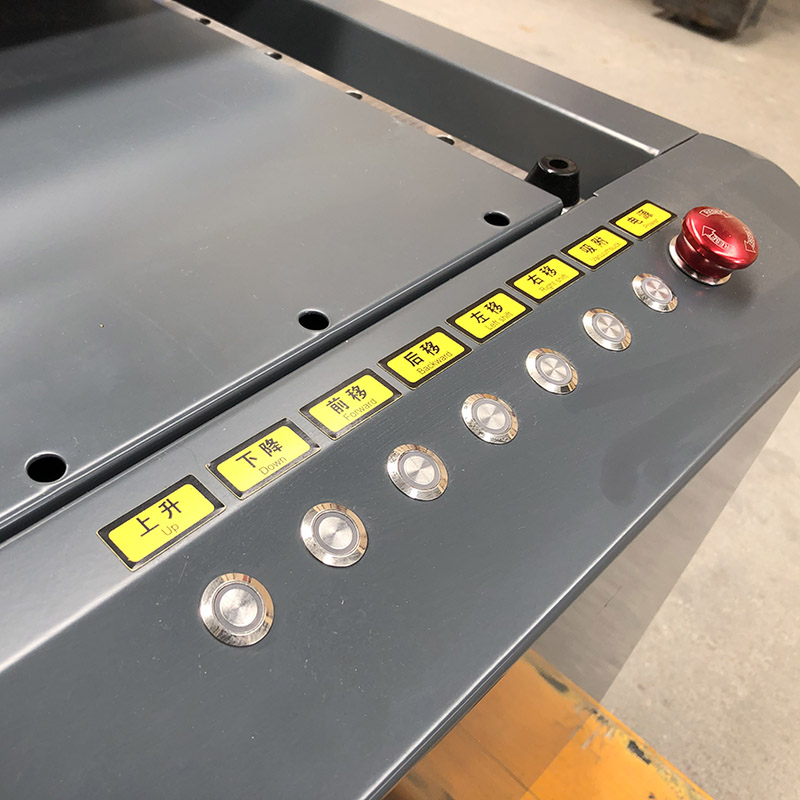

Operation buttons
These convenient operation buttons on the machine,includes the Backward/Forward buttons for platform moving;Right/Left buttons for carriage moving;Up/Down buttons for crossbeam moving;and the vacuum platform button.Easy operation,save your operation time always.
OEM available always for you based on our rich experience in uv printer since 2005’s.
Epson XP600/i3200,Toshiba&Ricoh heads optional for YDM 6090 uv printer to reach the various need from different customers.
Whether you need a high-precision printer or fast printing printer, we can customize the printing solution that meet your needs.

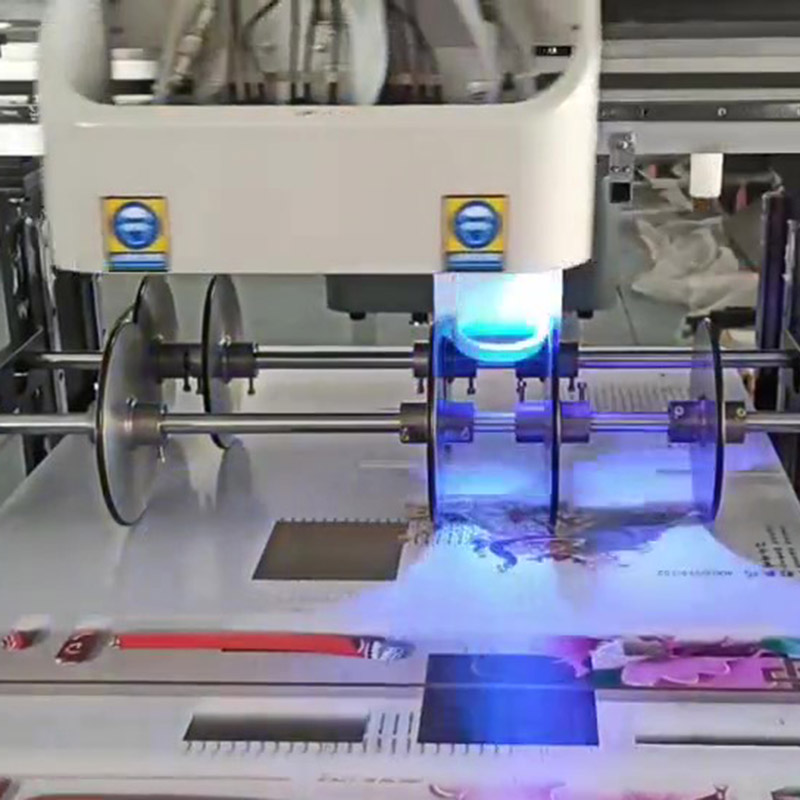

CMYK W V can be printed at the same time,UV varnish is cured by passing it under an ultraviolet light which quickly dries and hardens the varnish, creating a super high gloss varnish and offers the highest protection between varnish, aqueous and UV. Varnishing a product with UV will make it look much more professional, as well as making it much more attractive.Varnishing increases the perceived quality of the product. In addition, it is an economical and user-friendly process that can be easily applied by adding spot finishes or additional processes to the entire sheet. It can be manipulated to achieve the desired result
Productive Process
Machine Components Preparation
Application
UV printer is used mainly for printing on things like customized products and other flat surface objects. UV has a wide range of substrates that can be printed on like glass, metal, wood, plastics, ceramics and many more,Let us see some printed samples by YDM UV Printer
For more special items printing,pls feel free to contact us directly,we will provide you professional printing solutions and quality machine with good service.
After Sale Service
Tech Support
As the manufacturer of printing machine,YDM development always depends on the needs from customers,we provide the training for customers freely,and instructions that how to install the uv printer step by step.
On-Site Installation
We also provide our international customers with the on-site installation based on the customers’ need,or authorize our distributors to install the printing machine.
Online Service
Whatsapp/Wechat/Skype/Email and others available,and remote operation will fix the problems on time to save your maintenance cost.
Development Path
To break trough heavy price monopoly of imported machines,we overcome all kinds of difficulties and independent production.
YDM officially established and accomplish the construction of distribution channels,market share much increased since this year.
Honored with Vise present of SSIA,New dynamic bench making enterprise,Besides,YDM is the fist one verified by CE/SGS dual certification in this field.
YDM UV Industrial grade printing machine enjoys high reputation since it launched to market.
Deepen the cooperation with Toshiba,Ricoh,Hoson,KNFUN,UMC and other companies to ensure the machine configuration always ranked ahead.
Actively participate global competition,totally exported to more than 50 countries and regions.
Developed industry grade machine with G6 heads.
2021- Developed double spray roll to roll machine.
2025- Our Goal is to build YDM into a world renowned inkjet printer manufacturer upon company 20th anniversary.
