OEM Cheap Box Printing Machine Supplier – YDM Conveyor Hybrid UV Printer D2000 – Yicai
OEM Cheap Box Printing Machine Supplier – YDM Conveyor Hybrid UV Printer D2000 – Yicai Detail:
Product Picture
Product Parameters
Product Name: D2000 Hybrid Flatbed&roll to roll printer
| Print Technology | ||
| Print Format | 180 cm | |
| Print Height | 8.5 cm | |
| Head Model | 2-8 PCS RICOH G5 | |
| Color Set | CMYK+W+V | |
| Control System | UMC | |
| RIP Software | Printfactory | |
| Print Direction | Uni/ Bi-directional, Front/ Rear Alternative | |
| Resolution | 4 PASS : 720 x 600 dpi 6 PASS : 720 x 900 dpi 8 PASS : 720 x 1200dpi |
|
| Print Speed | Production mode: 34-17 sq.m/h Quality mode: 25.7-12.83 sq.m/h High resolution mode:17- 8.5 sq.m/h |
|
| Machine Highlight | ||
| Heavy Duty Frame | Strengthened Aluminum beam & metal base | |
| Driving Mode | HIWIN linear rail + Leadshine Servo motor + Import Drag chain | |
| Feeding & taking up Mode | roll to roll roller and Conveyor belt | |
| Work Table | Anodized aluminum Table +Vaccum Motor | |
| Ink System | Negative pressure Ink supply + White Ink stirring and circulation + Ink-lack Warning | |
| Curing System | Imported LED lamp, 30000 hours lifespan, Water cooling Chiller | |
| Head Cleaning | Automatic by Program / Positive Pressure Clean | |
| Height Detection | Semi-Automatic sensor | |
| Others | ||
| PC Configuration | Win7/ Win10, 64 bit, CPU≥ i5, RAM ≥8GB, Space for Disk C≥100G | |
| Signal Transmission | USB 2.0 | |
| Color Control | Comply with ICC standards, with curve and density adjustment function | |
| File Format | TIFF/ JPEG/ POSTSCRIPT3/ PDF | |
| Power Supply | AC220V,50/ 60HZ | |
| Noise | Standby < 32 dB ; Working < 65 dB | |
| Machine Size | 3.3 m x 1.5 m x 1.57 m | |
| Packing Size | 3.5 m x 1.7 m x 1.8 m | |
| Net Weight | 840 KG | |
| Gross Weight | 1000 KG | |
product details
CMYK ,W, V available and optional , Ricoh G5 industrial grade printhead ensure the print effect and speed , printhead lifespan 3-5yeas . for flat and roll material both can be printed.Expanded the function of uv printer.

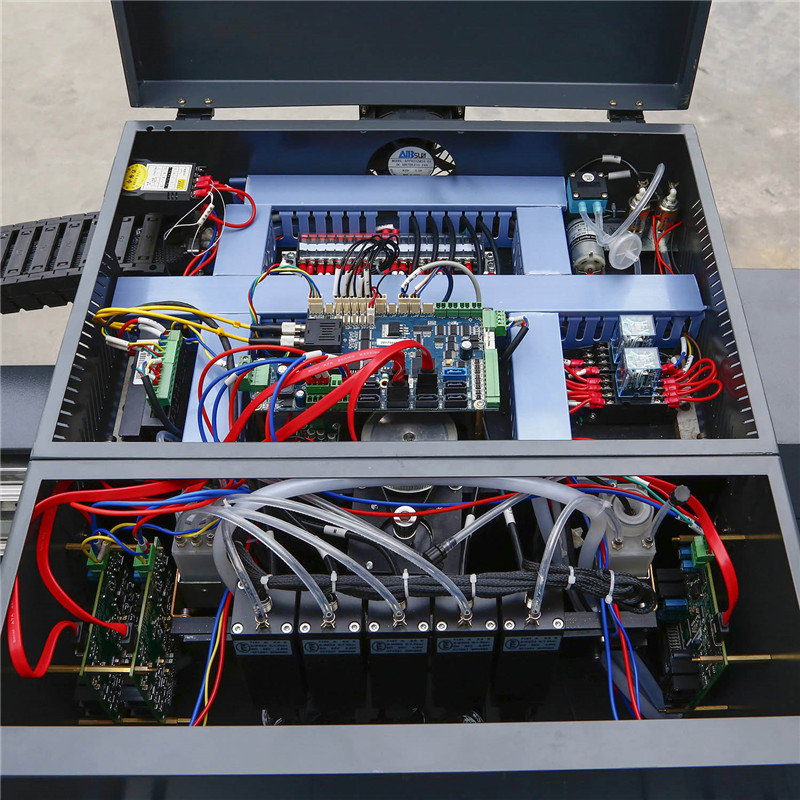

SHANGHAI ROYAL Mother Board
Mature and reliable ROYAL uv printing mother board ,easy operate ,high degree of automation

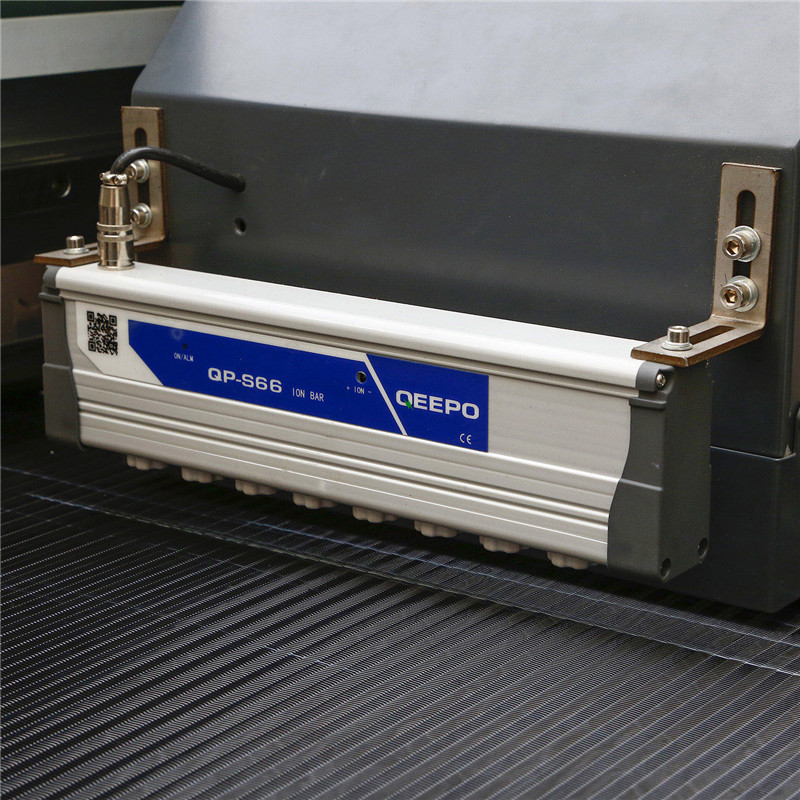

Static Eliminator
The static eliminator eliminates the interference of static electricity to ensure that the printing effect is not affected by static electricity

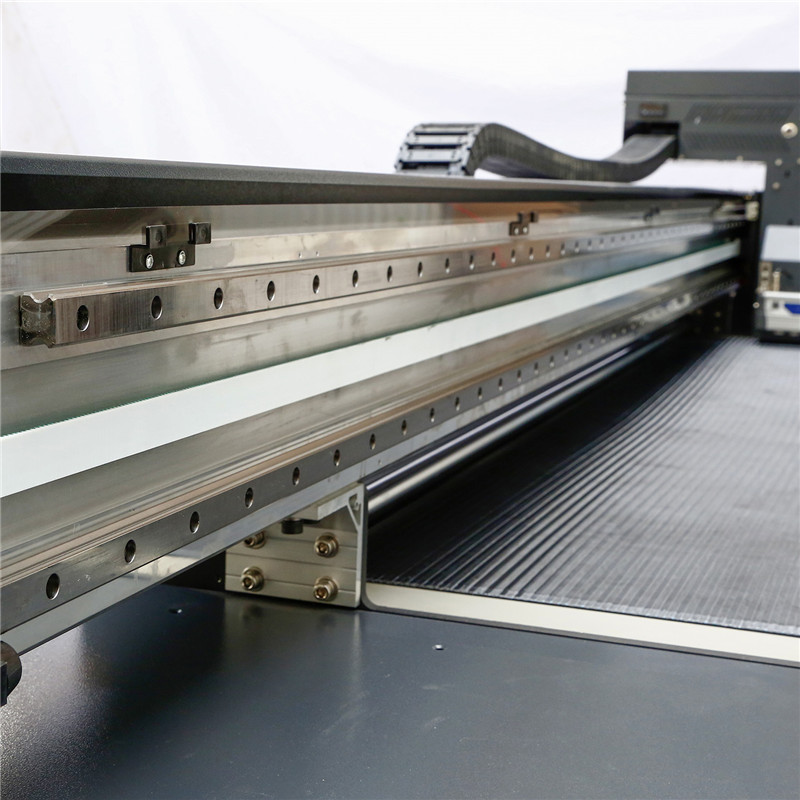

Guide Rail
Double mute imported rail ensure mute ,accurate and smooth movement of carriage Provides prerequisites for high-quality and high-precision printing

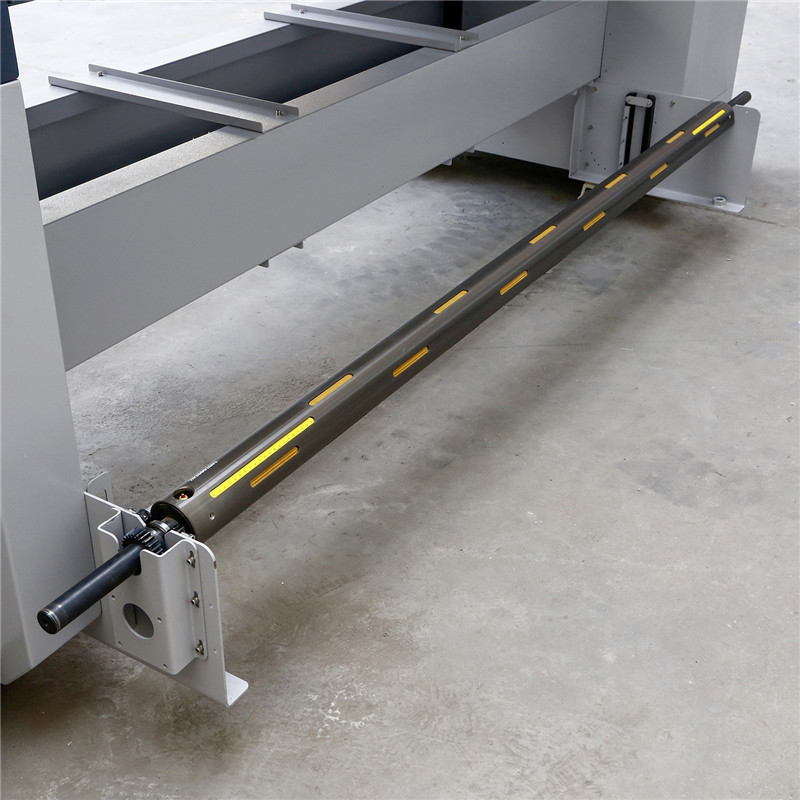

Pneumatic Shaft
Material sending and collective shaft for roll material installed pneumatic locker, Safely and efficiently solve the material sending and collecting .

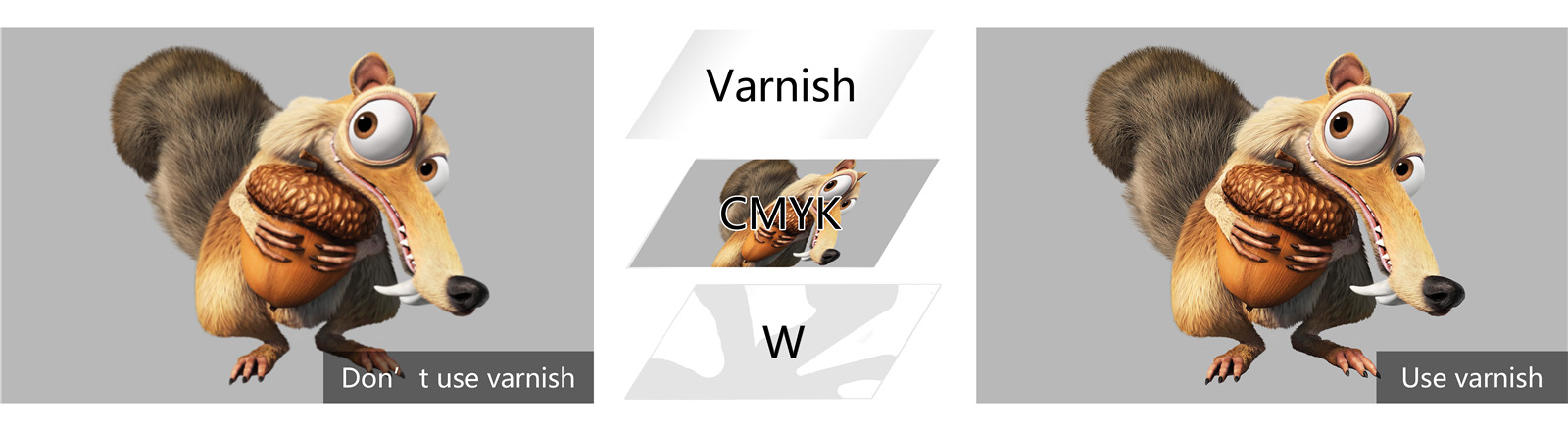

CMYK W V can be printed at the one time,UV varnish is cured by passing it under an ultraviolet light which quickly dries and hardens the varnish, creating a super high gloss varnish and offers the highest protection between varnish, aqueous and UV. Varnishing a product with UV will make it look much more professional, as well as making it much more attractive.Varnishing increases the perceived quality of the product. In addition, it is an economical and user-friendly process that can be easily applied by adding spot finishes or additional processes to the entire sheet. It can be manipulated to achieve the desired result
Productive Process
Machine Assembly&Testing
Application
For more special items printing,pls feel free to contact us directly,we will provide you professional printing solutions and quality machine with good service.
After Sale Service
Tech Support
As the manufacturer of printing machine,YDM development always depends on the needs from customers,we provide the training for customers freely,and instructions that how to install the uv printer step by step.
On-Site Installation
We also provide our international customers with the on-site installation based on the customers’ need,or authorize our distributors to install the printing machine.
Online Service
Whatsapp/Wechat/Skype/Email and others available,and remote operation will fix the problems on time to save your maintenance cost.
YDM offers 12 MONTHS WARRANTY on our uv printing machine. We create the service group that our professional technical support will follow you via telephone, email, live chat and skype video so you can contact us on time if you have a question or run into difficulty.
TRAINING
we train and and encourage our customers to service and maintain their own printers.It is easy job for you with our professional instructions.If uv printer is sold by YDM’s distributors,we will authorize them to send experienced engineers to support for the installation and collaboration when the machine arrives.
Development Path
To break trough heavy price monopoly of imported machines,we overcome all kinds of difficulties and independent production.
YDM officially established and accomplish the construction of distribution channels,market share much increased since this year.
Honored with Vise present of SSIA,New dynamic bench making enterprise,Besides,YDM is the fist one verified by CE/SGS dual certification in this field.
YDM UV Industrial grade printing machine enjoys high reputation since it launched to market.
Deepen the cooperation with Toshiba,Ricoh,Hoson,KNFUN,UMC and other companies to ensure the machine configuration always ranked ahead.
Actively participate global competition,totally exported to more than 50 countries and regions.
Developed industry grade machine with G6 heads.
2021- Developed double spray roll to roll machine.
2025- Our Goal is to build YDM into a world renowned inkjet printer manufacturer upon company 20th anniversary.
