OEM Cheap Flatbed Inkjet Printer Factories – YDM Industrial grade 2513 flatbed printer – Yicai
OEM Cheap Flatbed Inkjet Printer Factories – YDM Industrial grade 2513 flatbed printer – Yicai Detail:
Product Picture
Product Parameters
Product Name: YDM Industrial grade 2513 flatbed printer
| Print Technology | ||
| Printer Model | 2513 UV Printer | |
| Max. Print size | 2500*1300mm | |
| Print head model | Toshiba CE4M,Ricoh G5,G6 | |
| Qty of Printhead | 4-16 pcs/2-8pcs | |
| Print Direction | Unidirectional /Bi-directional | |
| Print head height | Semi-Automatic height adjustment (option Auto) | |
| Print head cleaning | Manual cleaning system | |
| Print resolution | Toshiba CE4M4 pass: 600*600 dpi 6 pass: 600*900 dpi 8 pass: 600*1200 dpi |
RICOH G54 pass: 720*600 dpi 6 pass: 720*900 dpi 8 pass: 720*1200 dpi
|
| Ink System | |
| Ink type | UV ink |
| Ink color | CMYK/ CMYK+W/CMYK+W+V/2*CMYK+2*W+2*V |
| Ink tank volume | 3.5L |
| Ink supply | Negative ink supply system |
| Drying type | Imported LED lamp curing |
| White ink stirring | Available |
| While ink circulation | Available |
| Media | |
| Media type | Acrylic/ aluminum/ ceramic/ foam board/ glass/cardboard & others |
| Max.media thickness | 100mm or customized |
| Operation | |
| Operation Language | Chinese / English |
| Operation system | Windows XP/ Windows 7/Windows 10 |
| Operation platform | Completed vacuum adsorption platform |
| Operation Environment | Temperature:20℃~28℃ Humidity:40% RH~60% RH |
| Computer configuration | System:XP,win7,win10,32/64 CPU:≥ Intel i5 RAM: ≥8GB Hard Disk: SATA 500G, NTFS CD Rom: DVD recordable Space for Disk C : ≥100 G |
| Others | |
| RIP software | UnitedFancy/Printfactory( option  hotoprint) |
| Interface | LAN |
| Color control | Comply with ICC standards with curve and density adjustment function. |
| Image format | TIFF,JPEG,POSTSCRIPT3,PDF |
| Power supply | AC220V,50/60HZ |
| Power consumption | 3.5 KW |
| Noise | Standby < 32dB Working < 65dB |
| The UV lamp | LED curing, 50000 hours long lifetime, water cooling |
product details
Vacuum Platform
Antioxidative vacuum platform with double teflon coating treatment,light weight with high hardness surface,scrath resistance and corrosion resistance,And mechanical alignment point to make sure the consistent media placement accurately.
Carriage
Newly designed lightweight carriage, OEEPO or AP&T static eliminator, temperature controller, head cleaning button and carriage anti-collision device to ensure more stable and accurate printing
Humanized operation design
The emergency stop button can protect the safety of personnel more effectively.
Convenient operation buttons make it easier for operators to operate.
6 PCS zone buttons, can get greater adsorption power and save electricity
Large volume ink tank
The 3.5 L large-volume ink tanks are equipped with ink lack alarm, which can meet the continuous production of 24 hours.
OEM available always for you based on our rich experience in uv printer since 2005’s.
FOR printer, according your needs, you can choice install Epson Series print head(such as F 1080-A1, L1440-A1, F1440-A1 or I 3200-U1 print head), Toshiba CE4M or RICOH G5/G6 print head.
Whether you need a high-precision printer or fast printing printer, we can customize the printing solution that meet your needs.

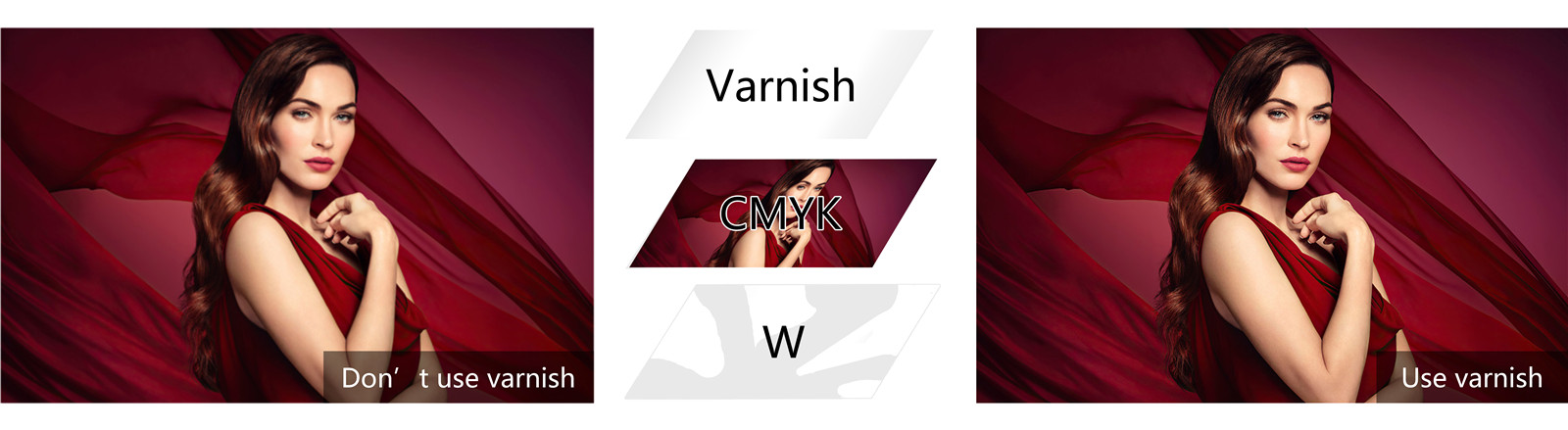

CMYK W V can be printed at the one time,UV varnish is cured by passing it under an ultraviolet light which quickly dries and hardens the varnish, creating a super high gloss varnish and offers the highest protection between varnish, aqueous and UV. Varnishing a product with UV will make it look much more professional, as well as making it much more attractive.Varnishing increases the perceived quality of the product. In addition, it is an economical and user-friendly process that can be easily applied by adding spot finishes or additional processes to the entire sheet. It can be manipulated to achieve the desired result
Productive Process
Machine Assembly&Testing
Application
UV printer is used mainly for printing on things like customized products and other flat surface objects. UV has a wide range of substrates that can be printed on like glass, metal, wood, plastics, ceramics and many more,Let us see some printed samples by YDM UV Printer
For more special items printing,pls feel free to contact us directly,we will provide you professional printing solutions and quality machine with good service.
After Sale Service
Development Path
To break trough heavy price monopoly of imported machines,we overcome all kinds of difficulties and independent production.
YDM officially established and accomplish the construction of distribution channels,market share much increased since this year.
Honored with Vise present of SSIA,New dynamic bench making enterprise,Besides,YDM is the fist one verified by CE/SGS dual certification in this field.
YDM UV Industrial grade printing machine enjoys high reputation since it launched to market.
Deepen the cooperation with Toshiba,Ricoh,Hoson,KNFUN,UMC and other companies to ensure the machine configuration always ranked ahead.
Actively participate global competition,totally exported to more than 50 countries and regions.
Developed industry grade machine with G6 heads.
2021- Developed double spray roll to roll machine.
2025- Our Goal is to build YDM into a world renowned inkjet printer manufacturer upon company 20th anniversary.
